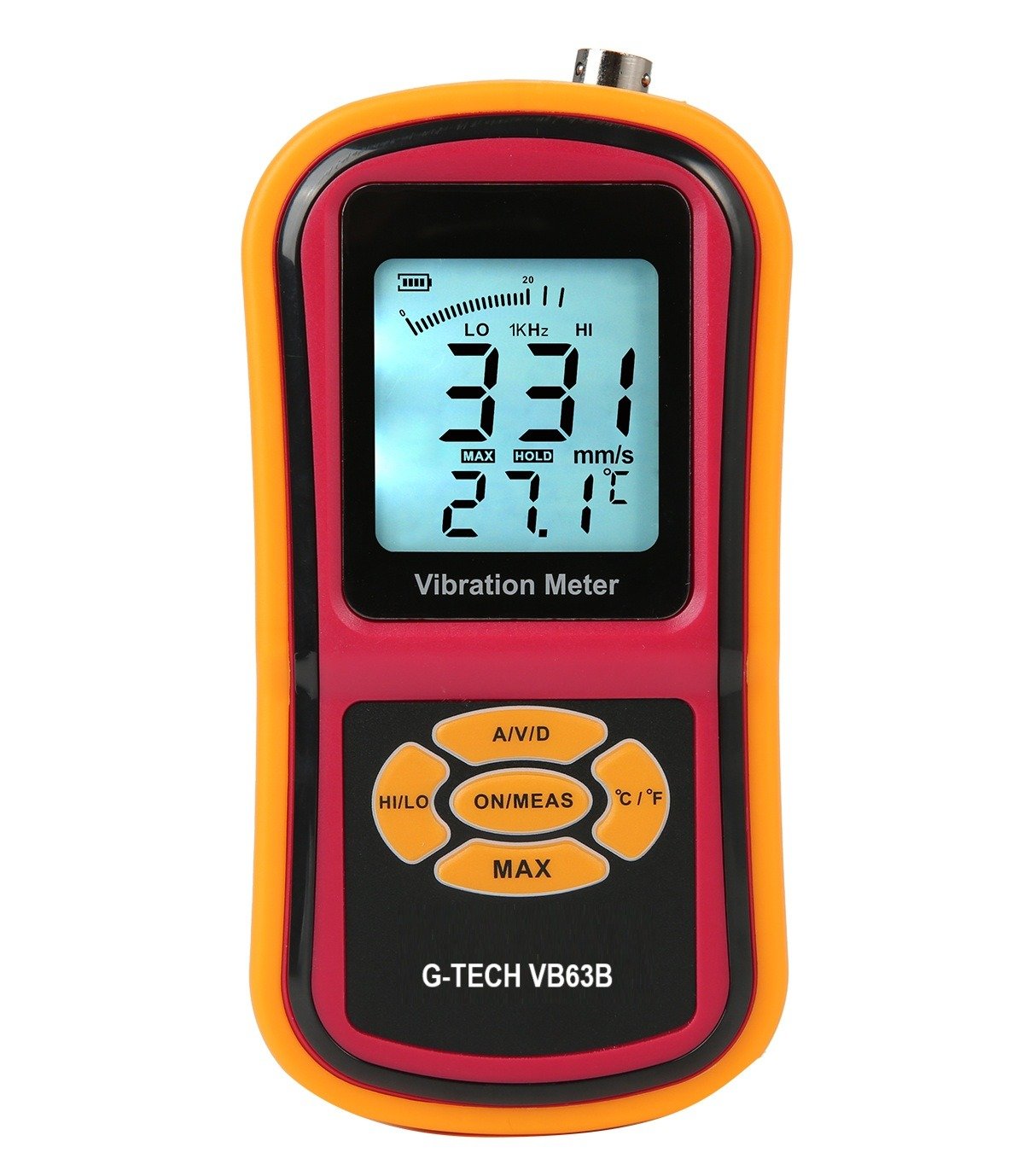

G-TECH VIBRATION METER VB 63B
Original price was: ₹25,653.₹20,650Current price is: ₹20,650. inc. gst
Function
• Simple to use, the structure is compact, portable for carrying
along with measurements
• Visually display measurement value and state
• Acceleration, velocity and displacement measurement
• Different vibration frequency selection
• High sensitivity probe for accurate measurement provides
long short probe head, each one is suitable for different situation
measurement
• Equipped with AC signal output interface
• Low power indication
• Auto power-off in 60sec (no manual off button)
• LCD backlight

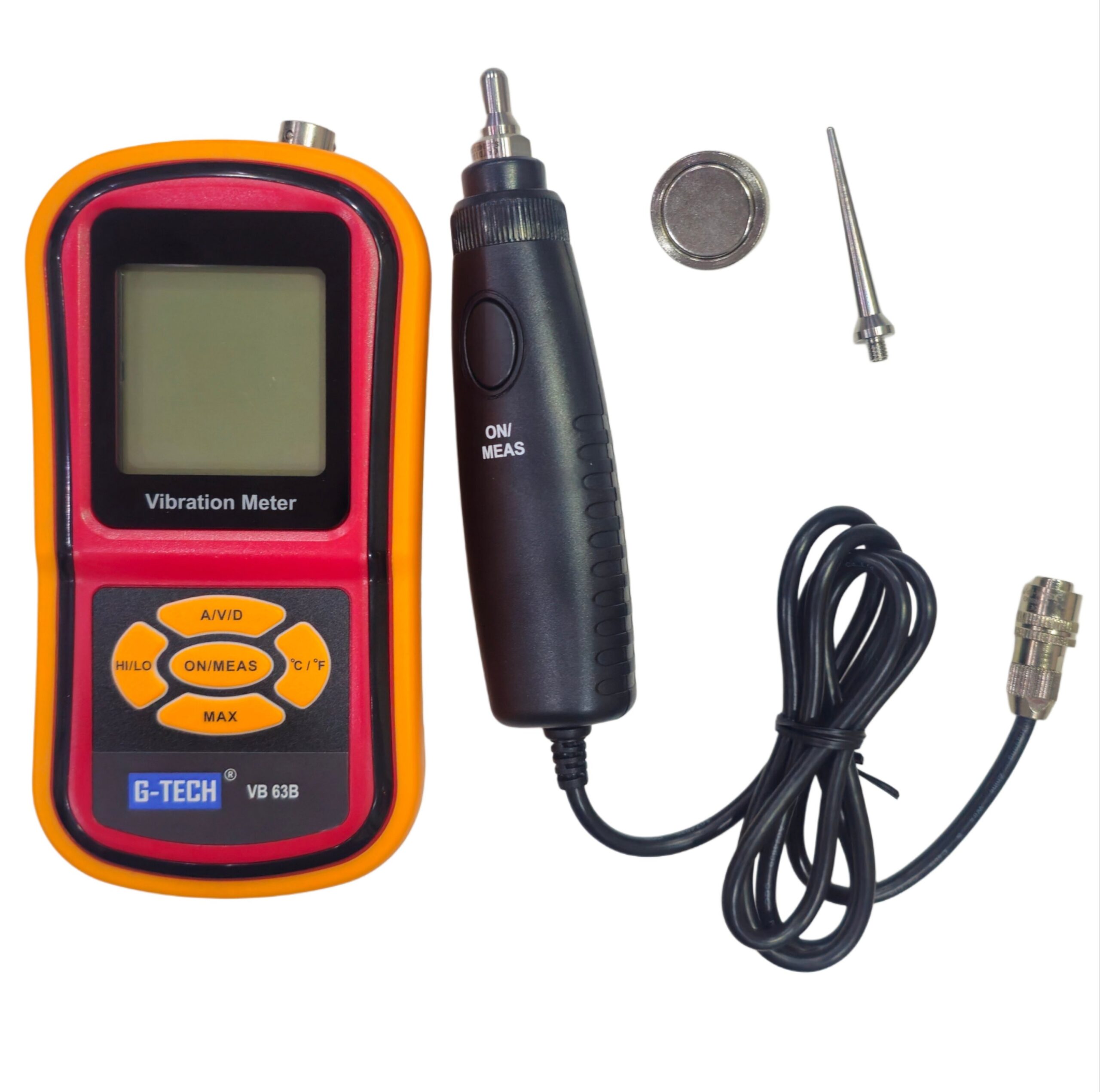

• Provides a magnetic probe to fit the condition
uneasy hold on by hand
• Maximum value hold function
• Temperature unit °C/°F selection
Description

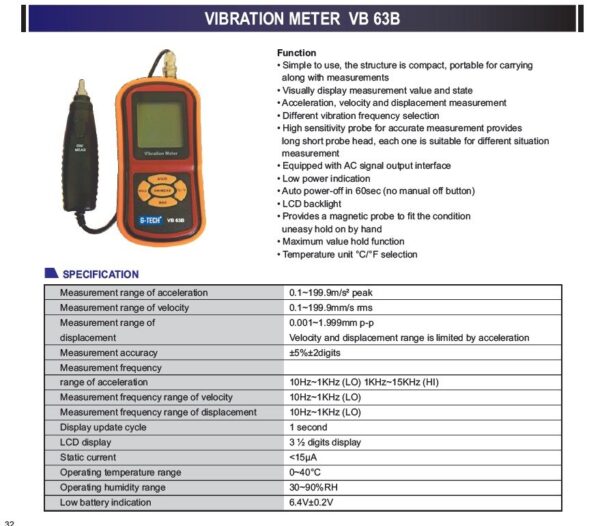

SPECIFICATION
Measurement range of acceleration: 0.1~199.9m/s² peak
Measurement range of velocity: 0.1~199.9mm/s rms
Measurement range of displacement: 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration
Measurement accuracy: ±5%±2digits
Measurement frequency range of acceleration: 10Hz~1KHz (LO) 1KHz~15KHz (HI)
Measurement frequency range of velocity: 10Hz~1KHz (LO)
Measurement frequency range of displacement: 10Hz~1KHz (LO)
Display update cycle: 1 second
LCD display: 3 ½ digits display
Static current: <15µA
Operating temperature range: 0~40°C
Operating humidity range: 30~90%RH
Low battery indication: 6.4V±0.2V
